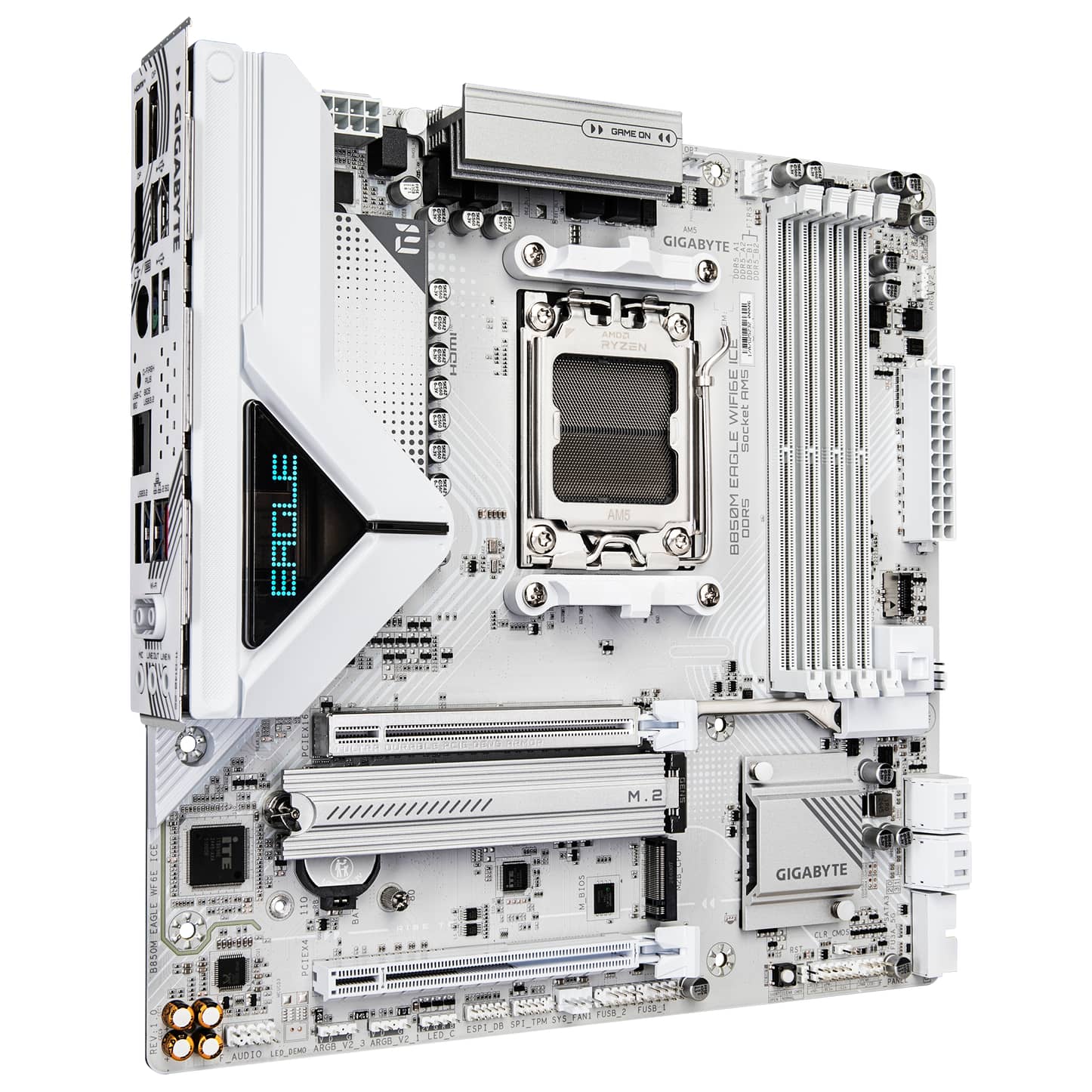

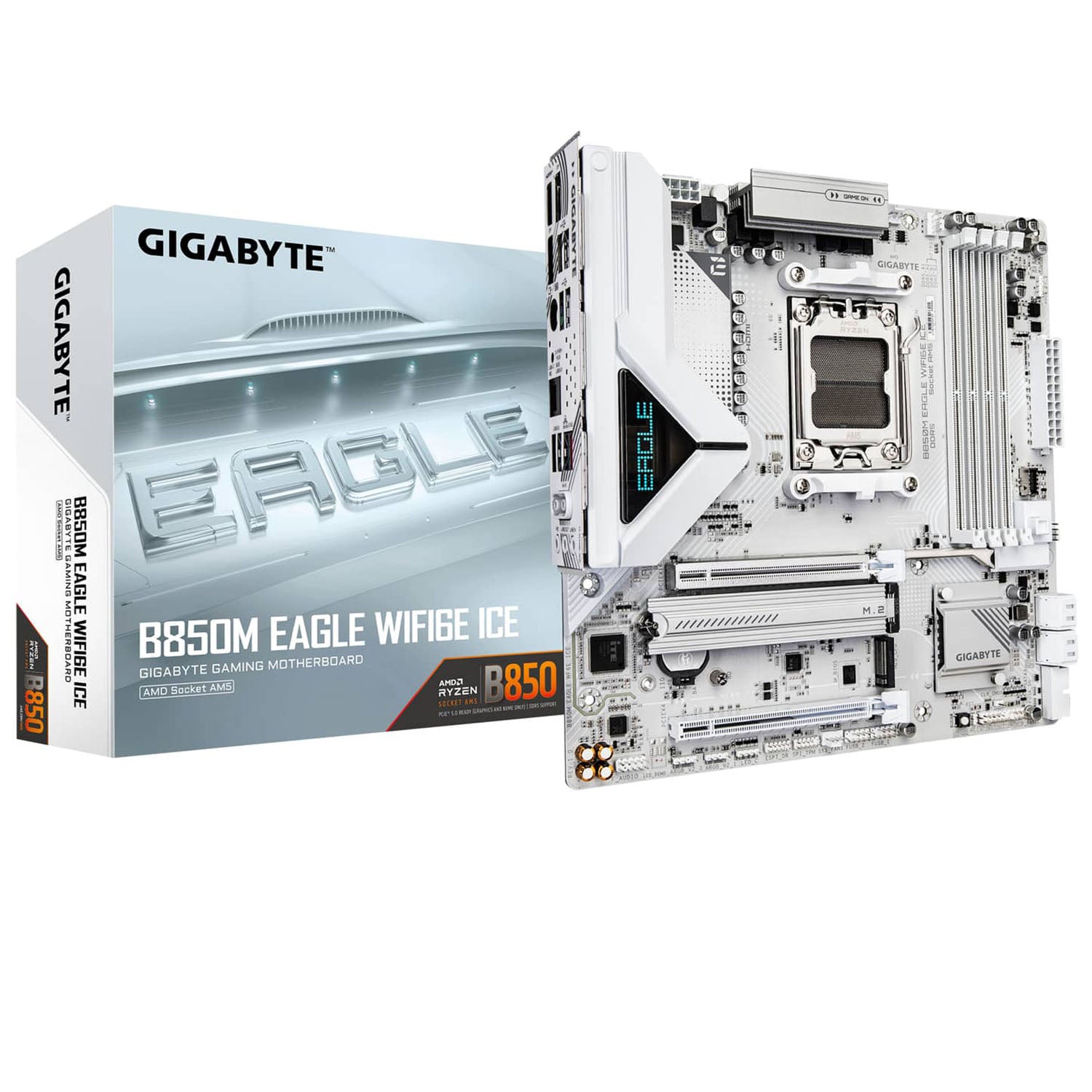

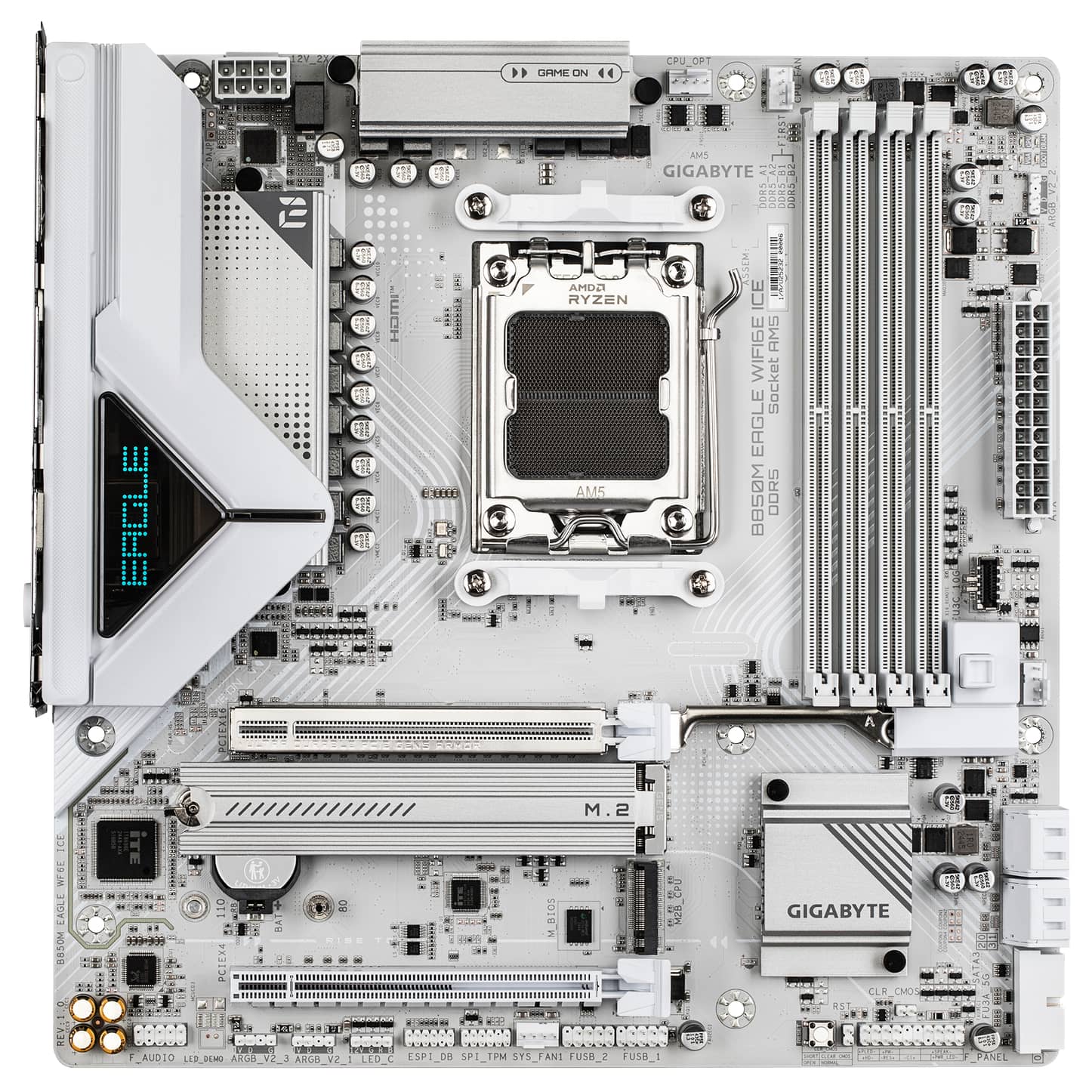

AORUS B850M EAGLE WIFI6E ICE – AM5 Micro ATX Motherboard, DDR5, PCIe 5.0, Wi‑Fi 6E
AORUS AM5 B850M EAGLE WIFI6E ICE DDR5
Build a compact and modern AM5 system with the AORUS B850M EAGLE WIFI6E ICE, a feature‑rich Micro ATX motherboard designed for Ryzen 7000 / 8000 / 9000 Series processors. Powered by the AMD B850 chipset, it delivers next‑generation performance with DDR5 up to 8200MT/s (O.C), PCIe Gen5 GPU support, dual M.2 slots including PCIe 5.0, Wi‑Fi 6E, 2.5GbE LAN, and robust VRM cooling. GIGABYTE technologies such as EZ‑Latch Plus, EZ‑Latch Click, Smart Fan 6, VRM Thermal Armor, and Q‑Flash Plus ensure easy installation, excellent stability, and long‑term durability — all wrapped in a clean ICE‑white Micro ATX design ideal for compact AM5 builds.
Specifications
Type: Micro ATX Motherboard
Brand: GIGABYTE
Model: B850M EAGLE WIFI6E ICE
Chipset: AMD B850
CPU Socket: AM5
Supported CPUs: AMD Ryzen 7000 / 8000 / 9000 Series
Memory
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 4 × 288‑pin
RAM Speed Support: Up to DDR5 8200 (O.C)
Max Memory: 256GB
PCIe Slots: 1 × PCIe 5.0 x16, 1 × PCIe 3.0 x16
M.2 Slots: 1 × PCIe Gen5 x4, 1 × PCIe Gen4 x4
SATA Ports: 4 × SATA 6Gb/s
RAID Support: RAID 0 / 1 / 10
Networking
LAN: Realtek 2.5GbE LAN
Wireless: Wi‑Fi 6E (RTL8852CE)
Bluetooth: 5.3
Audio
Codec: Realtek HD Audio
Channels: 2 / 4 / 5.1 / 7.1‑Channel HD Audio
Video Outputs
(Requires Ryzen CPU with integrated graphics)
1 × HDMI
2 × DisplayPort
Special Features
X3D Turbo Mode
Digital Twin 8+2+2 Phase VRM
EZ‑Latch Plus (PCIe & M.2 quick‑release)
EZ‑Latch Click (screwless M.2 heatsinks)
VRM Thermal Armor Advanced
M.2 Thermal Guard
Smart Fan 6
Wi‑Fi EZ‑Plug
Q‑Flash Plus
PCIe UD Slot reinforcement
Dual M.2 including PCIe 5.0 x4

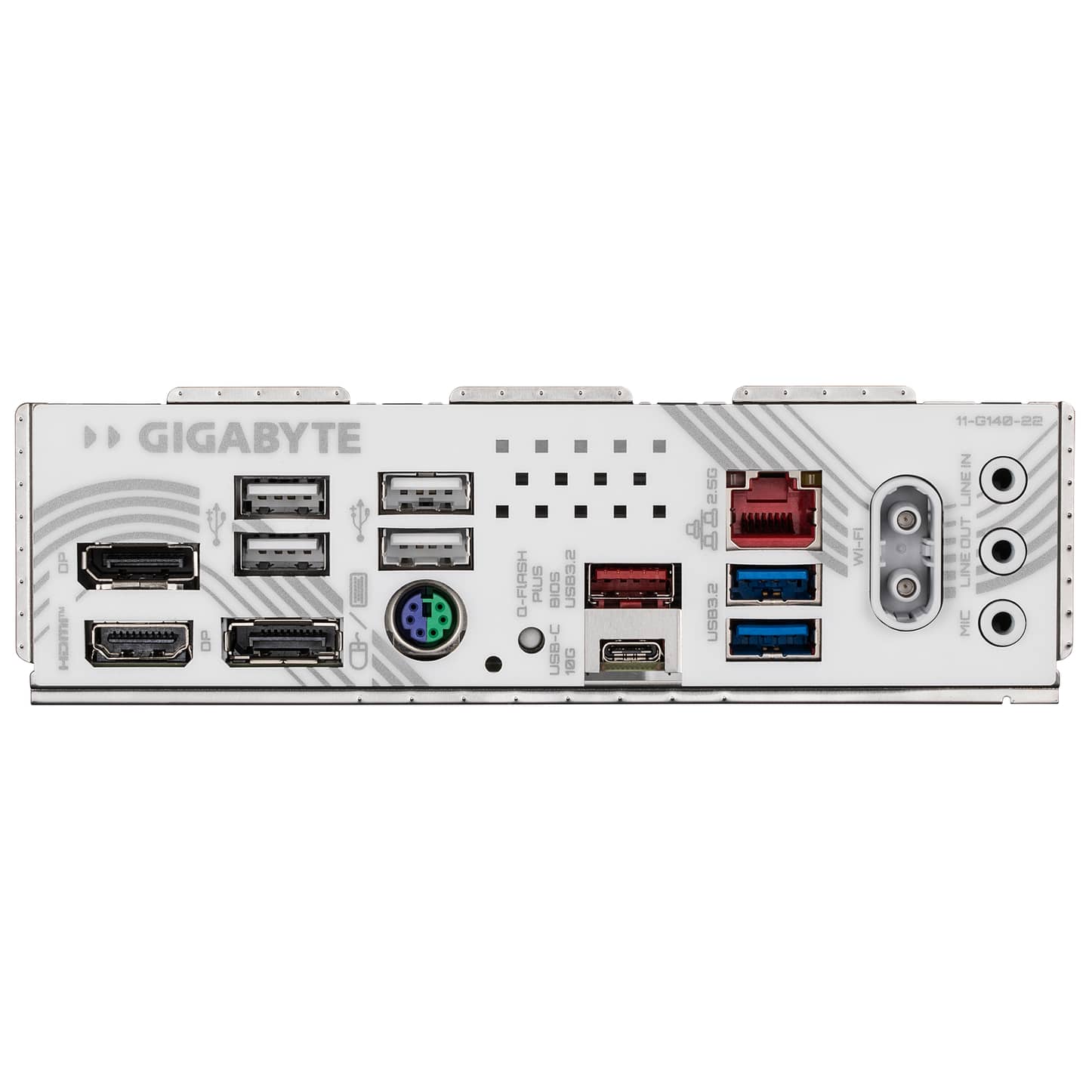

USB Connectivity Rear I/O
4 × USB 2.0
2 × USB 3.2 Gen1 Type‑A
1 × USB 3.2 Gen2 Type‑A
1 × USB 3.2 Gen2 Type‑C
HDMI
2 × DisplayPort
2.5GbE LAN
Wi‑Fi antenna connectors
3 × audio jacks
Q‑Flash Plus button
Internal Headers
24‑pin ATX
1 × 8‑pin CPU power
2 × USB 2.0 headers
1 × USB 3.2 Gen1 header
1 × USB 3.2 Gen2 header
3 × ARGB Gen2 headers
1 × RGB header
Front panel audio
TPM header
Reset button
Multiple fan headers
Form Factor: Micro ATX (244 × 244 mm)
