MSI MAG X870E TOMAHAWK MAX WIFI ATX AM5 Motherboard | PCIe 5.0

MSI MAG X870E TOMAHAWK MAX WIFI ATX Motherboard

Build a high‑performance next‑generation AMD system with the MSI MAG X870E TOMAHAWK MAX WIFI, an ATX motherboard engineered for extreme gaming, productivity, and modern connectivity. Featuring the AMD X870E chipset, support for AM5 Ryzen 7000 / 8000 / 9000 Series processors, and DDR5 speeds up to 8400MHz (O.C.), this board delivers exceptional capability for enthusiasts and creators. With PCIe 5.0 x16, quad PCIe 5.0 M.2 slots, Wi‑Fi 7, 5GbE LAN, USB4, and MSI’s premium cooling solutions, it offers a future‑ready platform for demanding builds. The board includes EZ‑DIY features like EZ M.2 Clip II, EZ PCIe Release, and EZ Antenna, ensuring effortless installation and long‑term reliability.

Specifications

Type: ATX Motherboard
Brand: MSI
Model: MAG X870E TOMAHAWK MAX WIFI
Chipset: AMD X870E
CPU Socket: AM5
Supported CPUs: Ryzen 7000 / 8000 / 9000 Series
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 4 × 288‑pin
RAM Speed Support: Up to DDR5 8400 (O.C.)
Max Memory: 256GB
PCIe Slots:  1 × PCIe 5.0 x16, 1 × PCIe 4.0 x16, 1 × PCIe 3.0 x16
Storage: 4 × M.2 PCIe 5.0 x4, 4 × SATA 6Gb/s, RAID 0/1/5/10 support
LAN: Realtek 8126 5GbE LAN
Wireless: Wi‑Fi 7 (2.4 / 5 / 6GHz, up to 5.8Gbps)
Bluetooth: v5.4
Audio: Realtek ALC4080 Codec
S/PDIF: Yes
Video Outputs: HDMI (requires CPU with integrated graphics)

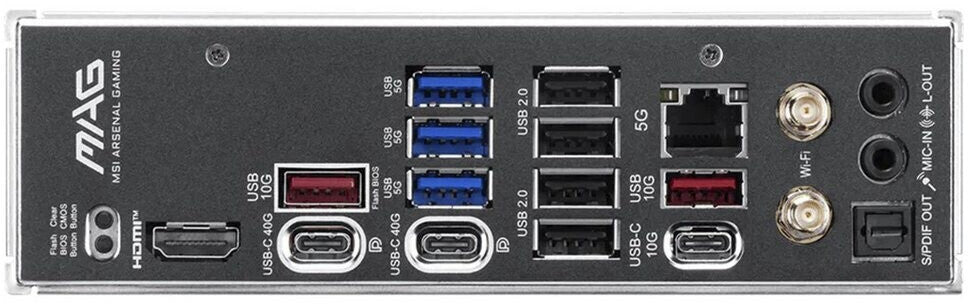

USB Ports (Rear):  3 × USB 5Gbps Type‑A, 2 × USB 10Gbps Type‑A, 1 × USB 10Gbps Type‑C, 2 × USB4 Type‑C, Clear CMOS button, Flash BIOS button
Internal Headers: USB 2.0 × 2, USB 5Gbps × 2, USB 20Gbps × 1, 3 × ARGB Gen2 headers, 1 × RGB header, TPM header, EZ Debug LEDs, EZ Conn‑header, Direct OC jumpers
Power Connectors: 24‑pin ATX, 2 × 8‑pin ATX
Form Factor: ATX (304.8 × 243.84 mm)
Most Suitable For: High‑end gaming, workstation builds, enthusiast‑grade performance
