ASUS Intel ROG MAXIMUS XI FORMULA 9th Gen ATX Motherboard

£399.99

ROG MAXIMUS XI FORMULA - Intel ATX Motherboard with Wi-Fi from ASUS

ASUS ROG MAXIMUS XI Z390

ROG MAXIMUS XI FORMULA ATX MOTHERBOARDROG Maximus XI Formula exhibits the sleek, refined and functional design that has become iconic in the Maximus motherboard series. With its distinctive integrated CrossChill EK 2” LiveDash OLED with more custom features III cooling block, intelligent overclocking software and a stunning polished-mirror finish, the latest-generation Formula is all set to make your showcase rig shine. Building on over a decade of ROG engineering and refinement, Formula is the motherboard that lets you push the boundaries while keeping the thermals in check and under careful control.

Please note: This motherboard supports Socket 1151 for 9th Gen and 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors, with integrated graphics, memory and PCI Express controllers to support onboard graphics output with dedicated chipsets, dual-channel (4-DIMM) DDR4 memory and 16 PCI Express 3.0/2.0 lanes for great performance.

Intel Z390Chipset

1151CPU Socket

8th & 9th Gen IntelCompatible CPUs

ATXForm Factor

Comprehensive Cooling Controls

EXPERTLY TOOLED TOTALLY COOLEDROG Maximus XI Formula features the most comprehensive cooling controls ever, configurable via Fan Xpert 4 or the UEFI BIOS. CrossChill EK III lets you cool with air and water. The redesigned cooling channels provide wider copper, delivering up to 37.2°C-lower MOSFET temperatures on water, and the standard G1/4" threaded fittings mean CrossChill EK III easily fits existing setups — so you can enjoy efficient, quiet cooling with the minimum effort.

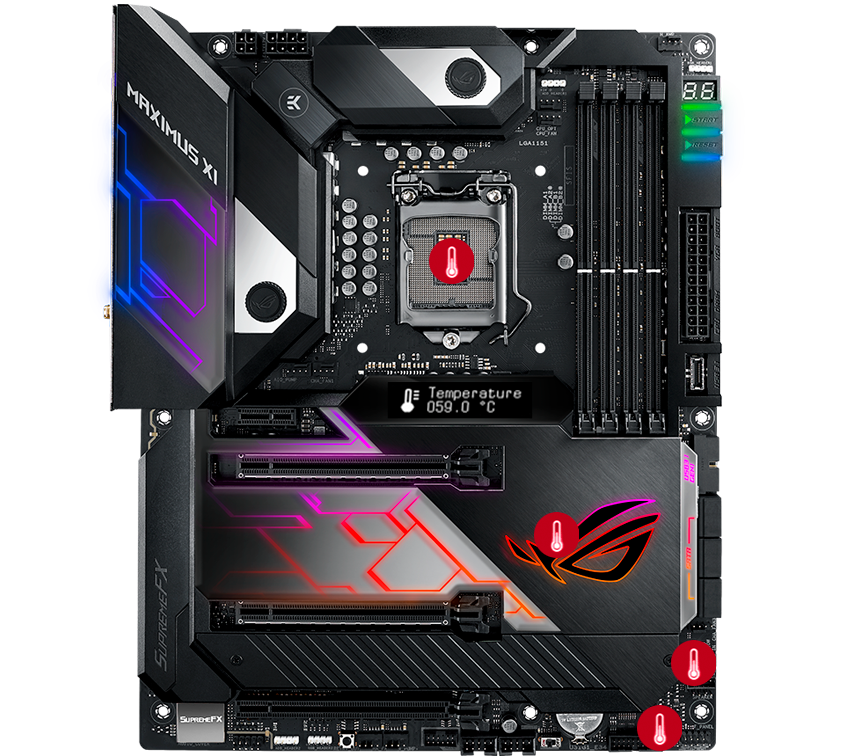

MULTIPLE TEMPERATURE SOURCESEach header can be set to monitor and react to three user-configurable thermal sensors, for workload based cooling. All easily managed by Fan Xpert 4 or UEFI.

Tune it Your Way with AI Overclocking

AI Overclocking

INTELLIGENT CONTROLASUS AI Overclocking makes automatic tuning faster and smarter than ever before. Available in Windows or directly through the UEFI, it profiles the CPU and cooling to predict the optimal configuration for each individual system. ASUS have created a proprietary algorithm that evaluates the capabilities of your CPU. The onboard intelligence also watches system vitals like temperatures, fan speeds, and power draw to gauge cooling performance.

5-Way Optimization

OVERCLOCKING INTELLIGENCETake care of complex tuning with just one click. ASUS 5-Way Optimization is a system-wide tuning utility that overclocks the processor and tunes fan speeds to ensure the best balance between cooling and acoustics. The automated CPU tuning feature of 5-Way Optimization leverages the same onboard intelligence as AI Overclocking,but goes further by running a Prime95 based stress test to deliver a result that's well-tuned from the get-go.

Fan Xpert 4

FLEXIBLE COOLING CONTROLSWith the ROG MAXIMUS Series you have comprehensive control over fans via Fan Xpert 4 or the media-acclaimed UEFI. Whether you are cooling with air or water, Auto-Tuning mode intelligently configures all parameters with a single click. Extreme Quiet mode reduces all fan speeds to below the default minimum assuring your system stays whisper-quiet when performing light tasks.

Excellent Memory Capabilities

ASUS maximus z390 memory connectivity

INTEGRATED OPTIMEM II TECHNOLOGYWhether you're gunning for high memory frequencies or tuning timings for the lowest latency, ROG Maximus XI provides the tools you need to exploit the Coffee Lake architecture's full potential: carefully optimized trace pathways maintain signal integrity, and the acclaimed ROG firmware offers the necessary tweaks to ensure stability while maximizing memory performance. Load up with a high-density memory kit for heavy multitasking, or run a focused setup that delivers the bandwidth your favorite games and applications need. Any way you stack it, the Formula has you covered. OptiMem II tech carefully maps memory signal pathways across different PCB layers to reduce vias and also adds shielding zones that significantly reduce crosstalk

Onboard 5G Ethernet with Wi-Fi

z390 gigabit intel ethernet

ASUS LANGUARDDesigned for the demanding requirements of power users and content creators who push the envelope, onboard 5Gbps Ethernet plugs you into a new era of home networking. With up to 5X the bandwidth of standard gigabit Ethernet, you'll enjoy streaming uncompressed 4K UHD videos and backups and file transfers that are faster than ever before. And there's also support for intermediate 2.5Gbps connectivity, allowing you to step up to faster networks for maximum flexibility. Choose the bandwidth that meets your needs and enjoy ultra-low latency at any speed.

Shielded Audio, Superior Sound

ROG Sonic Studio 3 Audio

SONIC STUDIO III PROVIDES CRYSTAL QUALITY SOUNDSImmerse yourself in sound with SupremeFX audio technology. Utilizing the S1220A codec, SupremeFX is the integrated-audio solution that's engineered to provide a flat frequency response for a neutral, detailed sound signature. And to ensure that pristine signature is perfectly preserved, the front-panel output is driven with dual op amps, delivering sonics with the scale and authority to create virtual worlds via your gaming headset. Sonic Studio supports HRTF-based (head-related transfer function*) virtual surround for VR headsets, casting an immersive aural landscape that draws you deeper into the action. The intuitive Sonic Studio interface also offers a range of EQ options and one-click presets, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset.

ASUS Aura Sync RGB Lighting

Z390 Aura RGB

EFFORTLESS SYNCHRONIZATION WITH ALL YOUR COMPONENTSThe ASUS Aura ecosystem is in the ascendancy, with an extensive and growing list of ASUS products now offering Aura Sync compatibility — along with loads of compatible accessories and kits available through partners. ROG MAXIMUS Series motherboards deliver sterling performance and superior aesthetics to Outshine the Competition. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB header — and it can all be synced with an ever-growing portfolio of Aura-capable ASUS hardware.

Enhanced UEFI BIOS

EASILY FIND YOUR WAY WITH EZ AND ADVANCED MODESThe UEFI BIOS is an early waypoint on any PC-building journey, and ROG MAXIMUS Series has one of the best in the business. The EZ mode presents all the vital settings and stats on a single page making it incredible easy to overclock a CPU to improve performance or even configure a RAID array for faster data retrieval and backups. Whether you're a PC novice or a seasoned overclocker, EZ and Advanced modes will help you quickly find your way, quickly and easily.

EZ

EZ MODEThe wizard in EZ mode makes short work of settings basics like the time and date, as well as more intricate settings like fan parameters and SATA port identification.

search

ADVANCED MODE WITH SEARCH FUNCTIONWhen you're ready for a deeper dive, Advanced mode enables full control over every aspect of the motherboard — with a built-in Search function to find the setting you need in the blink of an eye.

Experience GameFirst V Features

OPTIMIZE YOUR NETWORK TRAFFICGameFirst V is the ROG-exclusive tool that optimizes network traffic for faster, lag-free online gaming. Team your gateways, keeps tabs on bandwidth-hogging apps and make adjustments on the fly.

Fan Xpert 4

SMART/AUTO MODESOptimize network traffic for active apps, or allocate more bandwidth to games.

Livedash OLED Display

Z390 Aura RGBZ390 Aura RGB

DISPLAY YOUR OWN CUSTOM LOGOMaximus XI Formula is equipped with LiveDash, a built-in 2" OLED panel that displays useful information and customizable graphics. During the power-on, self-test (POST) phase, LiveDash shows key progress stats in simple language and via traditional POST codes. Then, during normal operation, the panel shows a choice of CPU frequency, device temperatures, fan speeds or information from the Water Cooling Zone. You're even able to customize the default LiveDash GIF, so that it'll display your own image or animation.

Boost your Game with Ramcache III

asus RAMCACHE 3

LAUNCH YOUR APPS AT NECK BREAKING SPEEDSRAMCache turns milliseconds into microseconds to boost game-load times. Fully compatible with the latest NVM Express storage options, its uniquely intelligent technology effectively caches an entire storage device so that favorite games and apps launch at breakneck speeds. Smart mode automatically caches all your storage devices to maximize your system's resources using an intuitive interface which displays real time drive information. RamCache III also allos you to efficiently check the health status of assigned memory.

ASUS Armoury Crate and More

asus armoury

SPEED YOUR GAME LOADSThe brand-new Armoury Crate portal keeps you updated with the latest drivers and BIOS releases. Its easy-to-use UI can be configured to show a variety of information, including security updates, bug patches, the latest ROG news, gaming events and special offers.


OVERWOLFOverwolf is a clever, unobtrusive overlay that lets you browse the internet, check email, instant message and stream or record gameplay while you're in the game. Color-matched ROG skins that display your status as a member of an elite pack are also available for download from the Overwolf App Store.



Specifications

Core Specifications
Edition ROG MAXIMUS XI FORMULA
Form Factor ATX
CPU Socket 1151
Chipset Intel Z390
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800(OC)
  • DDR4 - 3000(OC)
  • DDR4 - 3200(OC)
  • DDR4 - 3300(OC)
  • DDR4 - 3333(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4400+(OC)
Max. Memory Capacity 64GB (4x16GB)
Audio
Audio ROG SupremeFX 8-Ch. HD Audio S1220
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support 2-Way SLi
AMD CrossFire Support 3-Way CrossFire
Integrated Graphics
On-Board Graphics Connectors HDMI 1.4b
Internal Connectivity
Expansion Slots
  • 1 x M.2, 2242/2260/2280, PCIe 3.0
  • 1 x M.2, 2242/2260/2280/22110, PCIe 3.0/SATA
  • 1 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
  • 1 x PCIe 3.0 x16 (x8 Bandwidth)
SATA Support SATA3 / M.2
RAID Support via SATA3 / M.2 (PCIe)
Storage Mode Support
  • Intel Optane Memory Ready
  • Intel Rapid Storage Technology Support
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 3.0 Slot)
  • RAID 0
  • RAID 1
  • RAID 10 (SATA 0~5 ONLY)
  • RAID 5 (SATA 0~5 ONLY)
Internal I/O
  • 1 x 2-pin W_IN connector
  • 1 x 2-pin W_OUT connector
  • 1 x 24-pin (Power)
  • 1 x 3-pin W_FLOW connector
  • 1 x 4-pin (Power)
  • 1 x 4-pin AIO_PUMP Connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 1 x 4-pin H_AMP_Fan Connector
  • 3 x 4-pin System Fan Connector
  • 1 x 4-pin W_PUMP+ Connector
  • 1 x 5-pin EXT_FAN(Extension Fan) connector
  • 1 x 8-pin (Power)
  • 2 x Aura Addressable Strip Headers
  • 2 x Aura RGB Strip Headers
  • 1 x Front Panel Audio Header
  • 1 x MemOK!-II switch
  • 1 x NODE connector
  • 1 x Reset Button
  • 1 x ReTry Button
  • 6 x SATA III - 6Gb/s
  • 1 x START (Power On) button
  • 1 x System panel connector
  • 1 x T_Sensor Connector
  • 2 x USB 2.0 Header
  • 2 x USB 3.1 Gen1 Header
  • 1 x USB 3.1 Gen2 Header
External Connectivity
Network Interface Type
  • 802.11ac WiFi LAN
  • Wired 5 Gigabit LAN (5000)
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x AQUANTIA AQC-111C (5GbE LAN)
  • 1 x Intel Wireless-AC 9560 (ac WiFi, MU-MIMO, BT5)
  • 1 x Intel® I219V (Gigabit LAN)
Rear I/O Connectors
  • 1 x BIOS Flashback Button
  • 1 x Center/Subwoofer Speaker Out
  • 1 x Clear CMOS Button
  • 1 x HDMI 1.4b
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Rear Speaker Out
  • 2 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 6 x USB 3.1 Gen1 Type-A
  • 3 x USB 3.1 Gen2 Type-A
  • 1 x USB 3.1 Gen2 Type-C
  • 2 x Wi-Fi antenna connector holes
