AORUS B850 AORUS ELITE WIFI7 ATX AM5 Motherboard | PCIe 5.0

AORUS B850 AORUS ELITE WIFI7 ATX Motherboard

Build a powerful next‑generation AMD system with the AORUS B850 AORUS ELITE WIFI7, an ATX motherboard engineered for high‑performance gaming, productivity, and modern connectivity. Featuring the AMD B850 chipset, support for AM5 Ryzen 7000 / 8000 / 9000 Series processors, and DDR5 speeds up to 8200MHz (O.C.), this board delivers exceptional capability for enthusiasts and creators. With PCIe 5.0 x16, triple M.2 slots including PCIe 5.0 x4, Wi‑Fi 7, 2.5GbE LAN, USB 3.2 Gen2, and Q‑Flash Plus, it offers a future‑ready platform for demanding builds. AORUS EZ‑Latch tool‑less design, VRM Thermal Armour, and M.2 Thermal Guard ensure clean installation, efficient cooling, and long‑term stability.

Specifications

Type: ATX Motherboard
Brand: Gigabyte / AORUS
Model: B850 AORUS ELITE WIFI7
Chipset: AMD B850
CPU Socket: AM5
Supported CPUs: Ryzen 7000 / 8000 / 9000 Series (via AM5 support page)
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 4 × 288‑pin
RAM Speed Support: Up to DDR5 8200 (O.C.)
Max Memory: 256GB
PCIe Slots: 1 × PCIe 5.0 x16, 2 × PCIe 3.0 x16
Storage: 1 × M.2 PCIe 5.0 x4, 2 × M.2 PCIe 4.0 x4, 4 × SATA 6Gb/s, RAID 0/1/5/10 support
LAN: Realtek 2.5GbE LAN
Wireless: Wi‑Fi 7 (2.4/5/6GHz)
Bluetooth: v5.4
Audio: Realtek HD Audio, 2/4/5.1/7.1‑channel
S/PDIF: Yes
Video Outputs: HDMI, DisplayPort (Requires CPU with integrated graphics)

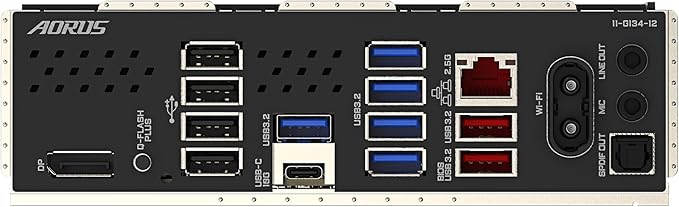

USB Ports (Rear): 4 × USB 2.0, 5 × USB 3.2 Gen1 Type‑A, 2 × USB 3.2 Gen2 Type‑A,1 × USB 3.2 Gen2 Type‑C
Internal Headers: USB 2.0 × 2, USB 3.2 Gen1 × 1, USB 3.2 Gen2x2 × 1, 3 × ARGB Gen2 headers, 1 × RGB header, TPM header, Front panel audio, Sensor Panel Link
Internal Buttons: Power, Reset, Q‑Flash Plus
Power Connectors: 24‑pin ATX, 8‑pin ATX, 4‑pin ATX
Form Factor: ATX (305 × 244 mm)
Most Suitable For: High‑end gaming, workstation builds, enthusiast‑grade performance
